ROUNDTRIP SOLUTION ARCHITECTURE DOCUMENT

Version: 1.1
Date: August 2026
Author: Pete Carroll, Founder — Traxs Group LLC
Status: Draft

---

01. Introduction

Purpose

This Solution Architecture Document (SAD) describes the technical architecture of Roundtrip — a multi-tenant Software-as-a-Service (SaaS) field service management platform developed by Traxs Company. It defines the system's structural decomposition, key architectural decisions, component interactions, data flows, deployment topology, and quality attribute strategies. This document is intended for software architects, developers, DevOps engineers, and technical stakeholders involved in the design and implementation of Roundtrip.

Scope

This document covers the complete Roundtrip platform, including: • The ASP.NET Core 10 backend API and its internal architecture • The React 19 frontend application for dispatchers and office staff • The multi-tenant data isolation strategy • The AI-powered route optimization pipeline (n8n + Ollama) • Real-time dispatch notifications via SignalR • Background job processing via Hangfire • Identity and access management via Entra ID • Deployment and infrastructure topology • Integration with external services (mapping, SMS, email, PDF generation)

Background

Roundtrip addresses the operational needs of field service businesses — HVAC, plumbing, auto service, computer repair, and similar industries. These businesses share common challenges: managing technician schedules, routing efficiently across multiple daily service calls, tracking parts inventory, generating invoices and quotes, and maintaining service history per client. Roundtrip is built as a multi-tenant SaaS platform, meaning a single deployed instance serves multiple business customers (tenants) with complete data isolation. This architecture reduces operational cost, simplifies maintenance, and enables rapid tenant onboarding.

Architectural Goals

Goal	Description	Priority
Multi-Tenancy	Complete data isolation between tenants at every layer — database, application, and identity	Critical
Scalability	Horizontal scaling of API servers without architectural changes; tenant-specific database scaling	High
Reliability	Horizontal scaling of API servers without architectural changes; tenant-specific database scaling	High
Data Sovereignty	AI inference runs locally via Ollama — tenant data never leaves the infrastructure	High
Developer Productivity	Clean Architecture, CQRS, and DDD patterns enable rapid feature development without regressions	Medium
Observability	Every request, job, and AI call is traceable via OpenTelemetry with tenant context	Medium
Extensibility	API-first design allows third-party integrations (accounting, CRM) without core changes	Medium

---

02. Architectural Overview

Architectural Style

Roundtrip follows a Layered Monolith architecture for the initial release, structured internally according to Clean Architecture principles. This is a deliberate choice — a well-structured monolith is faster to develop, easier to deploy, and cheaper to operate than microservices at early scale. The internal boundaries are designed to allow extraction into microservices if specific domains require independent scaling in the future.

Architecture Decision: Modular Monolith over Microservices

Microservices introduce significant operational complexity: service discovery, distributed transactions, inter-service authentication, network latency, and independent deployment pipelines. For a startup SaaS product, this overhead is premature. Roundtrip's Clean Architecture with CQRS creates the same internal boundaries that microservices would provide, but without the distributed systems complexity. The Tickets, Inventory, Routing, Billing, and Identity modules are logically isolated and can be extracted to services when justified by scale.

High-Level System Diagram

03 — APPLICATION ARCHITECTURE

Clean Architecture

Layer Structure

Roundtrip's backend is structured according to Clean Architecture (also known as Onion Architecture). Dependencies flow strictly inward — outer layers depend on inner layers, never the reverse. This ensures the domain model is completely independent of infrastructure concerns like databases, ORMs, and external APIs.

Layer Responsibilities

Layer	Project Name	Responsibilities	Key Technologies
Domain	Roundtrip.Core	Entities, Value Objects, Domain Events, Aggregate Roots, Domain Interfaces	Pure C# — no external dependencies
Application	Roundtrip.UseCases	CQRS Handlers, Use Cases, Application Services, Validation Pipeline, DTOs	Mediator, FluentValidation, Ardalis.Specification
Infrastructure	Roundtrip.Infrastructure	EF Core DbContext, Repositories, External API Clients, Background Jobs, Email/SMS	EF Core, Dapper, Redis, Hangfire, SendGrid, Twilio
API	Roundtrip.Api	FastEndpoints, SignalR Hubs, Authentication Middleware, Tenant Resolution, OpenAPI	ASP.NET Core 9, FastEndpoints, Entra ID, JWT, SignalR
Tests	Roundtrip.Tests.*	Unit tests (domain/application), Integration tests	xUnit, FluentAssertions, Testcontainers, NetArchTest, (Testcontainers), Architecture tests (NetArchTest)

---

Architecture Rules (Enforced by NetArchTest)

• Domain layer MUST NOT reference any external NuGet packages (pure C#) • Application layer MUST NOT reference Infrastructure or API projects • Infrastructure MUST NOT reference API project • All EF Core references MUST be in Infrastructure layer only • All Mediator handlers MUST be in Application layer • FastEndpoints MUST only reference Application DTOs, not Domain entities directly

04 — CQRS & REQUEST PIPELINE

CQRS and Request Pipeline

CQRS Pattern

Roundtrip implements Command Query Responsibility Segregation (CQRS) via Mediator. All state-changing operations are Commands; all read operations are Queries. This separation enables independent optimization of read and write paths, and ensures handlers remain focused and testable.

Pipeline Behaviors

Behavior	Applies To	Responsibility
LoggingBehavior	All requests	Logs request type, tenant ID, duration, and outcome to Serilog with structured fields
ValidationBehavior	All requests	Executes FluentValidation validators; returns 400 with problem details on failure without reaching handler
TenantScopingBehavior	All requests	Resolves TenantContext from JWT claim and injects into scoped services; prevents handler executing without valid tenant
CachingBehavior	Queries only	Checks Redis cache for query result; on miss, executes handler and populates cache with tenant-scoped key
TransactionBehavior	Commands only	Wraps handler execution in EF Core transaction; rolls back on exception; raises domain events post-commit

Result Pattern

All handlers return Result<T> rather than throwing exceptions. This provides explicit success/failure signalling without exception-driven flow control, and maps cleanly to HTTP problem details responses in FastEndpoints.

    // Command Handler return types
    Result<CreateTicketResponse>   // Success with data
    Result.Failure("Technician not found in this tenant")  // Domain error
    Result.NotFound()              // Entity not found
    Result.Unauthorized()          // Permission denied

    // FastEndpoint mapping
    var result = await mediator.Send(command);
    if (result.IsFailure) return TypedResults.Problem(result.Error);
    return TypedResults.Ok(result.Value);


05 — MULTI-TENANCY ARCHITECTURE

Multi-Tenancy Architecture

Tenancy Model

Roundtrip implements a hybrid tenancy model. The choice of isolation level is driven by tenant tier, data volume, and compliance requirements. All tenants share the same application codebase and API infrastructure; only the data layer varies.

Tier	Isolation Model	Database Strategy	Target Customer
Basic	Shared Schema	Single DB, TenantId column on every table, EF Core Global Query Filter	Small businesses (1–3 technicians)
Standard	Shared Schema	Single DB, TenantId column on every table, EF Core Global Query Filter	Small businesses (1–10 technicians)
Professional	Schema Isolation	Single DB server, separate schema per tenant (tenant_abc.Tickets)	Mid-size businesses (10–50 technicians)

Tenant Identification

Each incoming HTTP request is resolved to a tenant using the following strategy, evaluated in priority order: • JWT Claim — tid (tenant ID) claim in the Keycloak-issued access token (primary method) • Subdomain — tenant.roundtrip.app resolves to tenant slug, used for unauthenticated routes (login page) • Request Header — X-Tenant-Id header (for API-to-API calls and webhook receivers)

    // Tenant Resolution Middleware
    public class TenantResolutionMiddleware
    {
        public async Task InvokeAsync(HttpContext context)
        {
            // 1. Try JWT claim first
            var tenantId = context.User.FindFirst("tid")?.Value
                // 2. Fall back to subdomain
                ?? ExtractFromSubdomain(context.Request.Host)
                // 3. Fall back to header
                ?? context.Request.Headers["X-Tenant-Id"].FirstOrDefault();

            if (tenantId == null) { context.Response.StatusCode = 401; return; }

            var tenant = await _tenantRegistry.GetAsync(tenantId);
            context.Items["TenantContext"] = tenant;
            await _next(context);
        }
    }


EF Core Global Query Filter

The TenantId filter is applied globally in OnModelCreating, ensuring every EF Core query automatically includes WHERE TenantId = @currentTenantId without any handler needing to remember to filter manually. This provides defence-in-depth against data leakage.

    // ApplicationDbContext.cs
    protected override void OnModelCreating(ModelBuilder builder)
    {
        // Apply to every entity implementing ITenantEntity
        foreach (var entityType in builder.Model.GetEntityTypes()
            .Where(e => typeof(ITenantEntity).IsAssignableFrom(e.ClrType)))
        {
            builder.Entity(entityType.ClrType)
                .HasQueryFilter(e => EF.Property<Guid>(e, "TenantId")
                    == _tenantContext.TenantId);
        }
    }


Entra ID

description of Entra ID coming soon

06 — DOMAIN MODEL

Domain Model Overview

Core Aggregates

The Roundtrip domain is organized into the following bounded contexts and aggregate roots. Each aggregate is responsible for maintaining its own invariants and raising domain events when significant state changes occur.

Aggregate Root	Bounded Context	Key Entities / Value Objects	Domain Events
ServiceTicket	Tickets	TicketId, ClientId, TechnicianId, ServiceAddress (VO), TicketStatus (Enum), PartUsages, Notes	TicketCreated, TicketAssigned, TicketCompleted, TicketCancelled
Client	Clients	ClientId, ContactInfo (VO), ServiceAddress (VO), ServiceHistory	ClientCreated, ClientUpdated
Technician	Users	TechnicianId, UserId, Skills, CurrentLocation (VO), Schedule	TechnicianAssigned, LocationUpdated
InventoryItem	Inventory	ItemId, SKU, PartName, Quantity, ReorderThreshold, Location	StockLow, ItemConsumed, ItemRestocked
Invoice	Billing	InvoiceId, TicketId, LineItems, TotalAmount, InvoiceStatus	InvoiceGenerated, InvoiceSent, PaymentReceived
TechnicianRoute	RouteId, TechnicianId, Date, Stops (VO list), OptimizedOrder	RouteOptimized, RouteUpdated
Tenant	Identity	TenantId, TenantSlug, Plan, Settings, ConnectionString (Enterprise)	TenantProvisioned, PlanChanged

Key Value Objects

Value Object	Properties	Invariants
ServiceAddress	Street, City, State, PostalCode, Country, Latitude, Longitude	PostalCode must match City/State. Lat/Lng populated on geocoding. Cannot be partially constructed.
ContactInfo	FirstName, LastName, Email, PrimaryPhone, SecondaryPhone	Email must be valid format. PrimaryPhone required. At least one contact method required.
Money	Amount (decimal), Currency (ISO 4217)	Amount cannot be negative. Currency must be valid ISO code. Arithmetic preserves currency.
TicketStatus	Enum: Open, Assigned, InProgress, OnHold, Completed, Cancelled	Status transitions follow defined state machine. Completed/Cancelled are terminal states.
GPS Coordinate	Latitude, Longitude	Lat: -90 to 90. Lng: -180 to 180. Both required together.

Ticket State Machine

07 — API DESIGN

API Design

API Style & Conventions

Roundtrip exposes a RESTful HTTP API built with FastEndpoints (REPR pattern). All endpoints are versioned, tenant-scoped, and return RFC 7807 Problem Details on error. The API is documented via Scalar (OpenAPI 3.0).

Convention	Rule
Base URL	https://api.roundtrip.app/v1/ (or https://{tenant}.roundtrip.app/api/v1/)
Versioning	URL path versioning: /v1/, /v2/ — new major version on breaking changes only
Authentication	Bearer JWT (Entra ID access token) in Authorization header
Tenant Scoping	Resolved from JWT tid claim; all resources automatically scoped to tenant
Response Format	application/json — all responses. Problem Details (RFC 7807) for errors
Pagination	Cursor-based pagination for list endpoints: ?cursor=&limit=50
Filtering	Query string parameters: ?status=open&technicianId=&from=&to=
HTTP Methods	GET (read), POST (create), PUT (full update), PATCH (partial update), DELETE
Status Codes	200 OK, 201 Created, 204 No Content, 400 Bad Request, 401, 403, 404, 409 Conflict, 422 Unprocessable

Key API Endpoints

Method	Endpoint	Description	Auth
GET	/v1/tickets	List tickets for tenant (paginated, filterable)	Dispatcher+
POST	/v1/tickets	Create new service ticket	Dispatcher+
GET	/v1/tickets/{id}	Get ticket by ID with full details	All roles
PATCH	/v1/tickets/{id}/status	Update ticket status (state machine enforced)	Technician+
POST	/v1/tickets/{id}/parts	Record part usage on ticket (photo + quantity)	Technician
GET	/v1/clients	List clients with service history summary	Dispatcher+
POST	/v1/clients	Create new client record	Dispatcher+
GET	/v1/clients/{id}/history	Full service history for a client	Dispatcher+
GET	/v1/routing/{technicianId}/today	Get optimized route for technician today	Technician, Dispatcher
POST	/v1/routing/optimize`	Trigger route optimization (calls n8n/Ollama)	Dispatcher
GET	/v1/inventory	List inventory items with stock levels	All roles
PATCH	/v1/inventory/{id}/quantity	Adjust stock quantity	TenantAdmin, Dispatcher
GET	/v1/inventory/low-stock	Items below reorder threshold	Dispatcher+
POST	/v1/invoices	Generate invoice from completed ticket	BillingStaff+
POST	/v1/invoices/{id}/send	Send invoice via email/SMS	BillingStaff+
GET	/v1/invoices/{id}/pdf	Download invoice as PDF	BillingStaff+
GET	/v1/technicians	List technicians with current status	Dispatcher+
PATCH	/v1/technicians/{id}/location	Update technician GPS location	Technician (self only)

08 — REAL-TIME & BACKGROUND PROCESSING

Real-Time and Background Processing

SignalR Real-Time Architecture

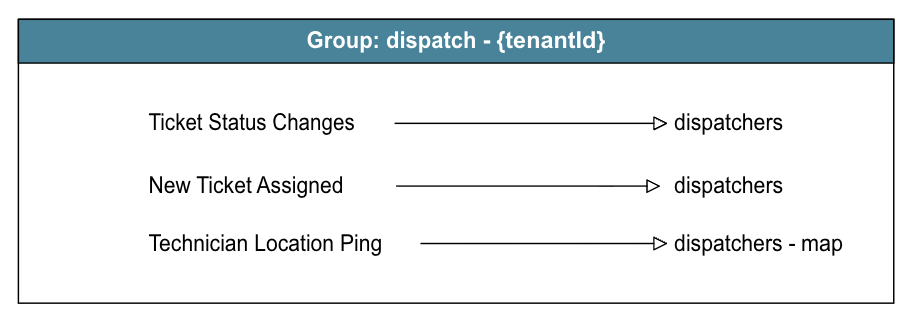

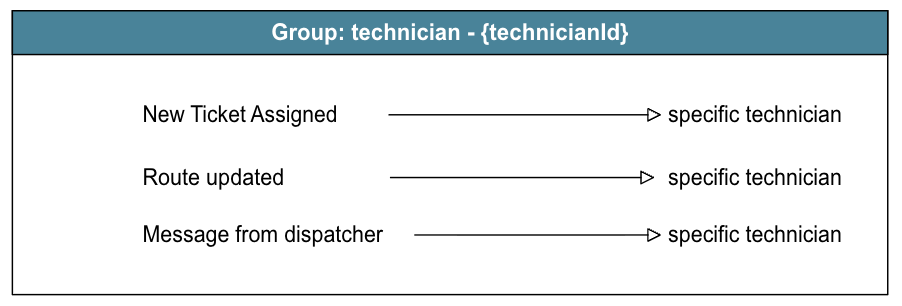

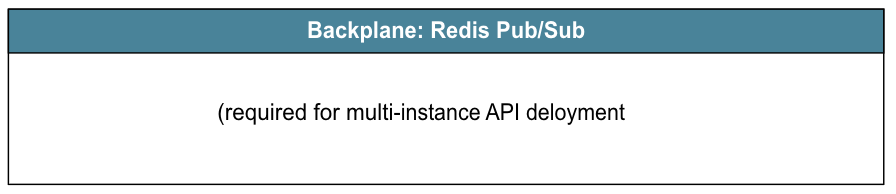

Roundtrip uses SignalR for real-time push to the dispatcher dashboard and technician PWA. All SignalR groups are tenant-scoped to prevent cross-tenant data leakage.

Hangfire Background Jobs

Roundtrip uses Hangfire for all background processing. Jobs store in SQL Server (shared with application data), providing reliable persistence across restarts. All jobs are tenant-aware via injected TenantContext.

Job	Type	Trigger	Retry Policy
SendInvoiceEmail	Fire-and-forget	Invoice.Send command via IMediator	3 retries, 5min exponential backoff
SendInvoiceSMS	Fire-and-forget	Invoice.Send command via IMediator	3 retries, 5min exponential backoff
GenerateInvoicePdf	Fire-and-forget	Ticket completed domain event	3 retries, immediate
OptimizeRoutes	Recurring	Daily at 5:00 AM per tenant timezone	2 retries, alert on final failure
LowStockAlert	Recurring	Every 6 hours per tenant	2 retries
TenantDailyReport	Recurring	Daily at 8:00 AM per tenant timezone	2 retries
PurgeExpiredCache	Recurring	Daily at 2:00 AM (system)	1 retry
TenantOnboarding	Continuation chain	Tenant registration: provision DB → create realm → seed data → send welcome	Per-step retries

09 — AI & AUTOMATION ARCHITECTURE

AI and Automation Architecture

Route Optimization Pipeline

Roundtrip's route optimization runs via an n8n workflow triggered daily by Hangfire. The workflow calls Ollama's local LLM to produce an optimized stop order for each technician, then writes the result back to the Roundtrip API. No tenant data leaves the infrastructure.

This section is under review

We need to evaluate which AI infrastructure to implement for the Traxs One Project and not just RoundTrip. The platforms we will evaluate are:

1. n8n -- Ollama self contained AI platform
2. Microsoft Foundry - Azure Service
3. Microsoft Foundry - Local

n8n

AI agents and workflows you can see and control

Build visually, go deep with code, connect to anything. Every step of your agents' reasoning, traceable on the canvas. Deploy on your infrastructure or ours.

Microsoft Foundry

The AI app and agent factory

Microsoft Foundry is the enterprise AI platform to build, ground, and govern AI apps and agents at scale. It brings together your full agent lifecycle with open development, built-in intelligence, and consistent security, compliance, and policy controls across every agent.

Microsoft Foundry Local

Build local AI into your app

Use native SDKs to download, cache, load, and call optimized local models on-device.

Tenant AI Assistant (RAG Architecture)

The in-app AI assistant enables tenant users to ask natural language questions about their own data: service history, inventory, technician performance, and billing. This is implemented using Retrieval-Augmented Generation (RAG) with a local Ollama LLM.

evaluation of which AI platform to use

10 — DATA ARCHITECTURE

Data Architecture

Caching Strategy

Cache Type	What is Cached	TTL	Invalidation
Tenant Config	Cache Tenant settings, connection string, plan details	1 hour	Explicit eviction on tenant settings update
Route Cache	Optimized route result per technician per day	Until next optimization run	Explicit on route update or ticket change
Inventory Summary	Low-stock counts, total item counts	15 minutes	Explicit on stock adjustment
User Permissions	Decoded JWT claims and role cache	JWT expiry (15 min)	On token refresh
Geocoding Results	Address → lat/lng for known addresses	30 days	Never (immutable)

Data Retention & Audit

Roundtrip uses SQL Server Temporal Tables for full audit history on key entities. Every change to ServiceTicket, InventoryItem, and Invoice is automatically tracked with a timestamp and can be queried for compliance or dispute resolution purposes.

• Temporal tables on: ServiceTickets, InventoryItems, Invoices, Clients
• Soft deletes on all tenant-owned entities — IsDeleted flag, never physical DELETE
• Hangfire job history retained for 30 days (configurable per tenant plan)
• Log retention: 90 days in Seq/Application Insights (configurable)

Database Connectivity

// TenantContext resolves connection string at runtime
// Standard tenants use shared connection string (row-level isolation)
// Enterprise tenants get their own connection string from TenantRegistry

public class TenantAwareDbContext : ApplicationDbContext
{
    protected override void OnConfiguring(DbContextOptionsBuilder options)
    {
        var connString = _tenantContext.Plan == TenantPlan.Enterprise
            ? _tenantContext.ConnectionString      // dedicated DB
            : _config["ConnectionStrings:Shared"]; // shared DB

        options.UseSqlServer(connString);
    }
}

11 — SECURITY ARCHITECTURE

Security Architecture

Authentication Flow

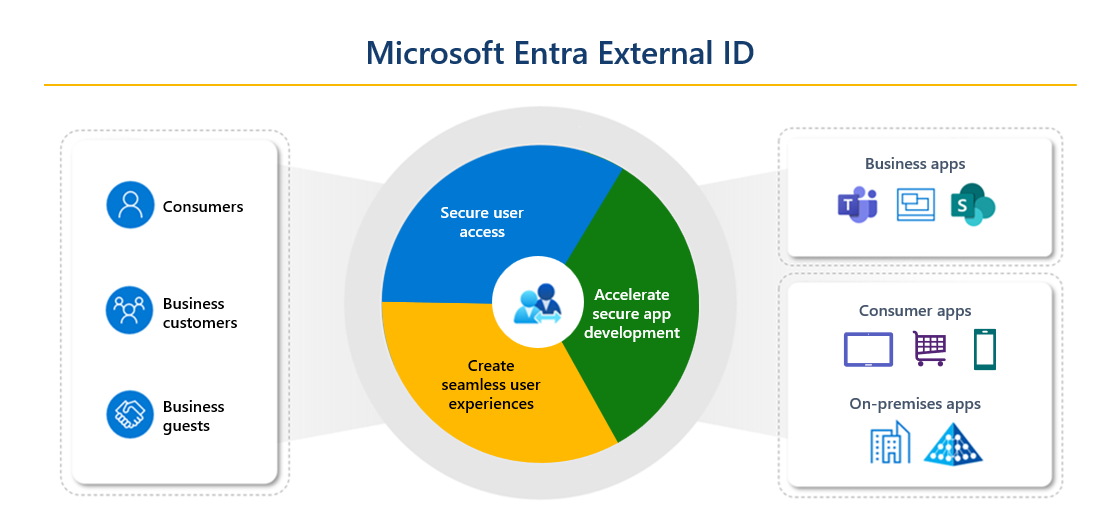

Microsoft Entra External ID

Image is from Microsoft's website and is their property

Authorization Model

Role	Permissions Summary
TenantAdmin	Full access to all tenant data. User management, settings, billing, reports. Cannot access other tenants.
Dispatcher	Create/assign/update tickets. View all technicians and routes. View inventory. Generate quotes. Cannot manage users or billing.
Technician	View own assigned tickets. Update ticket status and part usage. Update own location. View own route. Read-only on other data.
BillingStaff	View all tickets (read-only). Full access to invoices, quotes, payment records. Cannot assign tickets or manage users.
ReadOnly	Read-only access to all tenant data. No mutations permitted. Suitable for reporting integrations.

Security Controls

Threat	Control
Cross-tenant data leakage	EF Core Global Query Filter (primary) + SQL Server Row-Level Security (defence-in-depth) + NetArchTest enforcement
Unauthorized API access	Entra ID JWT validation on every request. No endpoint is accessible without a valid tenant-scoped token.
Injection attacks	FluentValidation on all inputs. EF Core parameterized queries. Dapper parameterized queries. No raw SQL string concatenation.
Broken object-level auth	All resource lookups include TenantId in WHERE clause. Result.NotFound returned for cross-tenant ID guessing.
Sensitive data exposure	No PII logged (addresses, phone numbers masked in Serilog). Connection strings in Azure Key Vault / environment variables.
Background job tampering	Hangfire dashboard protected by TenantAdmin role. Jobs enqueued only from authenticated API context with tenant claim.
AI prompt injection	Tenant AI assistant prompts validated and sanitized. System prompt instructs model to only answer from provided context.

12 — DEPLOYMENT ARCHITECTURE

Deployment Architecture

Containerization

Every Roundtrip component is packaged as a Docker container, enabling consistent environments across development, staging, and production. Docker Compose orchestrates the full stack locally; Kubernetes (or Docker Swarm) handles production orchestration.

# docker-compose.yml — Development Stack
  services:
    api:            # ASP.NET Core 10 API
    frontend:       # React 19 dev server (Vite)
    sqlserver:      # SQL Server 2022
    redis:          # Redis 7 (cache + SignalR backplane)
    *n8n:            # n8n workflow automation
    *ollama:         # Ollama LLM runtime
    seq:            # Seq log viewer (dev only)
    hangfire-ui:    # Hangfire dashboard (api sidecar)

    * Pending review

Production Topology

13 — QUALITY ATTRIBUTES

Quality Attribute Strategies

Quality Attribute	Target	Strategy
Performance	API P95 < 200ms for reads, < 500ms for writes	Redis caching, Dapper for complex queries, EF Core compiled queries, async throughout, pagination enforced
Scalability	Support 500+ concurrent tenants, horizontal API scaling	Stateless API instances, Redis distributed cache, SignalR Redis backplane, connection pooling
Availability	99.9% uptime SLA	Active-active API instances, SQL Server read replica, Redis cluster, Keycloak cluster, health checks with auto-restart
Security	Zero cross-tenant data leakage, no PII in logs	EF Core Global Query Filter, SQL RLS, JWT validation, FluentValidation on all inputs, Serilog PII masking
Maintainability	New feature in 1 bounded context does not break others	Clean Architecture enforced by NetArchTest, CQRS keeps handlers small, Domain Events decouple modules
Testability	80%+ code coverage, no flaky tests	Testcontainers for real DB/Redis in tests, Result pattern (no exception flow), Bogus for test data generation
Observability	Full trace from HTTP request to DB query	OpenTelemetry distributed tracing, Serilog structured logging enriched with TenantId, Hangfire dashboard

14 Summary of Changes

This will be the log of changes to this document between versions

v1: Initial Version v1.1: Adding to Ops Manual, adjusting from keycloak to Entra Id and AI functionality review
